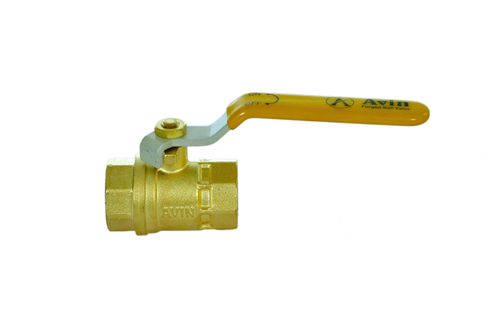

brass ball valve

Name: brass ball valve
Brand: AVIN BRASS COMPONENTS
Price: 100.0 INR
Availability: InStock

100.0 INR/Piece

Get a Price/Quote

Product Details:

Caliber Full Bore
Pressure 1.6 MPa
Structure Ball
Connection BSP Threaded
Channels Two Way
Material Brass
Power Manual
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

brass ball valve Price And Quantity

Price 100.0 INR/Piece
Minimum Order Quantity 100 Piece

Stem Type Blow-out Proof
Mounting Position Horizontal, Vertical
Surface Treatment Chrome/Nickel Plated
Operation Quarter Turn
Handle Material Steel (PVC Coated)
Control Type On/Off
Body Material Standard CW617N
Leakage Rate Zero Leakage
Sealing Material PTFE
End Connection Female x Female

brass ball valve Product Specifications

Flange Not Flanged
Media Water, Oil, Gas
Finish Nickel Plated
Power Manual
Application Industrial and Domestic Piping
Caliber Full Bore
Structure Ball
Pressure 1.6 MPa
Temperature of Media -10C to 120C
Connection BSP Threaded
Material Brass
Port Size 15mm to 50mm
Channels Two Way

Stem Type Blow-out Proof
Mounting Position Horizontal, Vertical
Surface Treatment Chrome/Nickel Plated
Operation Quarter Turn
Handle Material Steel (PVC Coated)
Control Type On/Off
Body Material Standard CW617N
Leakage Rate Zero Leakage
Sealing Material PTFE
End Connection Female x Female

brass ball valve Trade Information

Supply Ability 10000 Piece Per Month
Delivery Time 2 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Product Description

Buy from us manually operated Forged Brass Ball Valve that is commonly used in domestic and industrial flow systems to adjust the fluid flowing rate. It is available in many different diameters that can be customized according to customer demands and application areas. It is provided with internal threads to make tight and leak proof connections. Buyers can get this heavy-duty Forged Brass Ball Valve from our company at a low price.

A forged brass ball valve is a high-strength, quarter-turn valve used to control the flow of liquids or gases in a pipeline. It is manufactured using a forging process, which enhances the valves durability, pressure resistance, and structural integrity compared to cast valves.

Efficient On/Off Flow Control

This brass ball valve is designed for reliable on/off flow regulation, using a quarter-turn mechanism and a full bore caliber for uninterrupted media passage. Its blow-out proof stem enhances safety during operation, while the PTFE sealing ensures excellent resistance to leaks and corrosive substances. Ideal for pressurized water, oil, or gas systems, the valve's robust construction and user-friendly handle promote long-term performance in both industrial and domestic settings.

Versatile Mounting and Application

The valve supports both horizontal and vertical mounting positions, catering to varied piping layouts. With BSP threaded, female x female ends, it integrates seamlessly into new and existing piping systems. Its wide temperature range and pressure capability make it suitable for a multitude of uses in homes, factories, and commercial environments, providing flexible installation options for professionals seeking a dependable and versatile ball valve solution.

FAQ's of brass ball valve:

Q: How is the brass ball valve installed in piping systems?

A: The valve is fitted by connecting its female BSP threaded ends to compatible male threads within horizontal or vertical piping. It does not require flanging, making installation straightforward in both industrial and domestic set-ups.

Q: What are the benefits of using a CW617N brass body with PTFE sealing material?

A: CW617N brass ensures strength and resistance against corrosion, while PTFE sealing material provides a reliable, zero-leakage seal. This combination supports longevity and reduces maintenance in applications involving water, oil, or gas.

Q: When should a quarter-turn ball valve like this be used?

A: Quarter-turn ball valves are ideal for applications requiring rapid and secure on/off control, particularly where flow needs to be started or stopped quickly without gradual throttling. Their straightforward operation makes them suitable for emergency shut-offs and routine use.

Q: Where can this full bore ball valve be utilized effectively?

A: This valve serves well in industrial and domestic piping systems, accommodating water, oil, or gas. Its pressure and temperature tolerance, along with two-way passage, makes it suitable for various piping networks in both commercial and residential facilities.

Q: What is the process for operating the valve, and is special power required?

A: Operation is manual and simple; rotate the PVC-coated steel handle 90 degrees for full open or closed positions. No external power source is required, making it user-friendly and efficient for any setting.

Q: What distinguishes a blow-out proof stem in this valve?

A: The blow-out proof stem design ensures the stem remains securely in place when under internal pressure, enhancing operator safety and maintaining system integrity during use.
